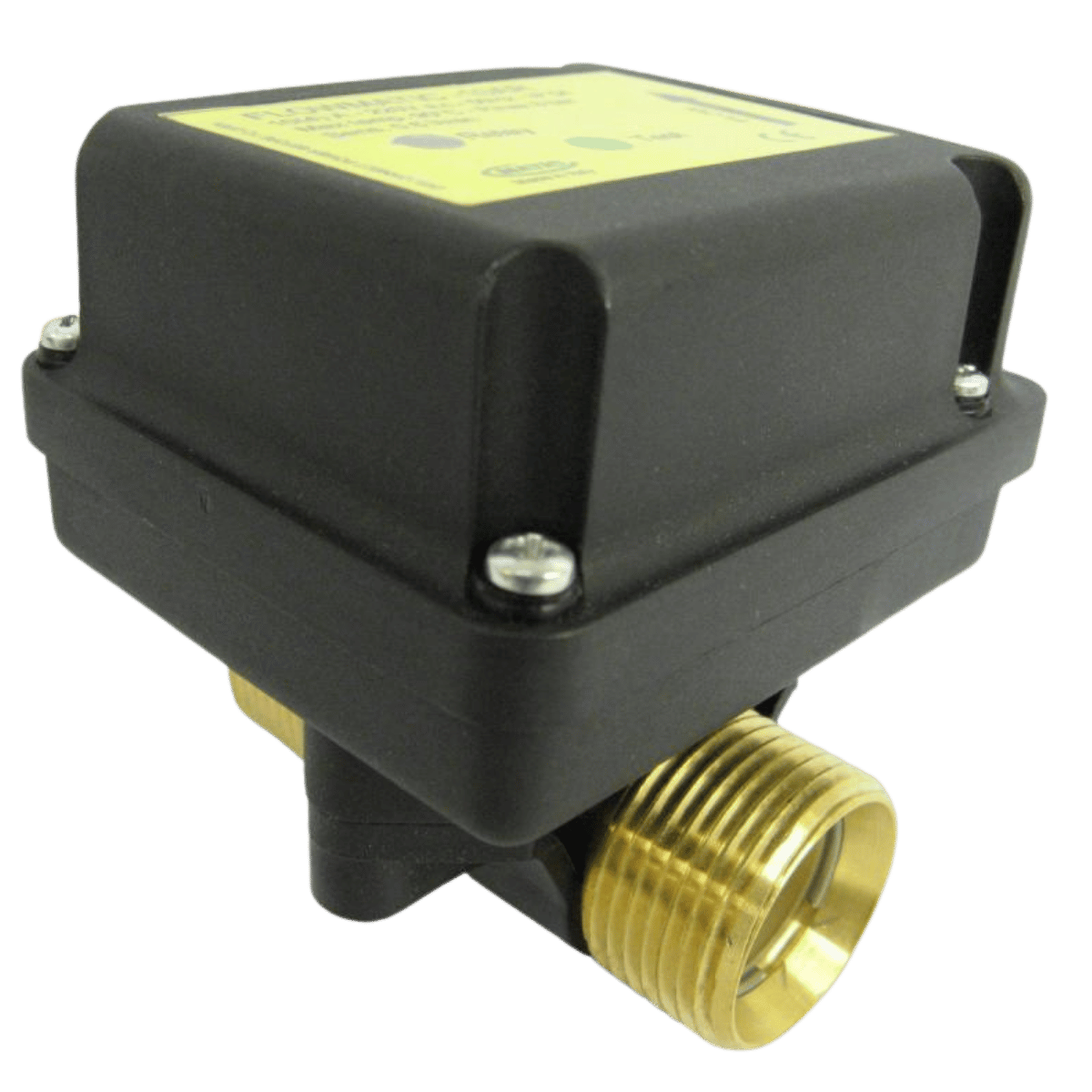

European Inline Paddle Flow Switch

• European quality
• 25mm BSP thread
• Minimum flow: 5 l/min
• Max pressure: 10 bar
• Max temperature: 85°C
• Current: 10 (4) amps
• Delayed pump start: 0-13 sec

This unit has a relay built-in which allows power to the pump on start up

and disengages after a set time which is adjustable from 0-13 seconds.

This means the pump will always re-start when the power is turned off

then on such as where a pressure switch is wired into the circuit.
