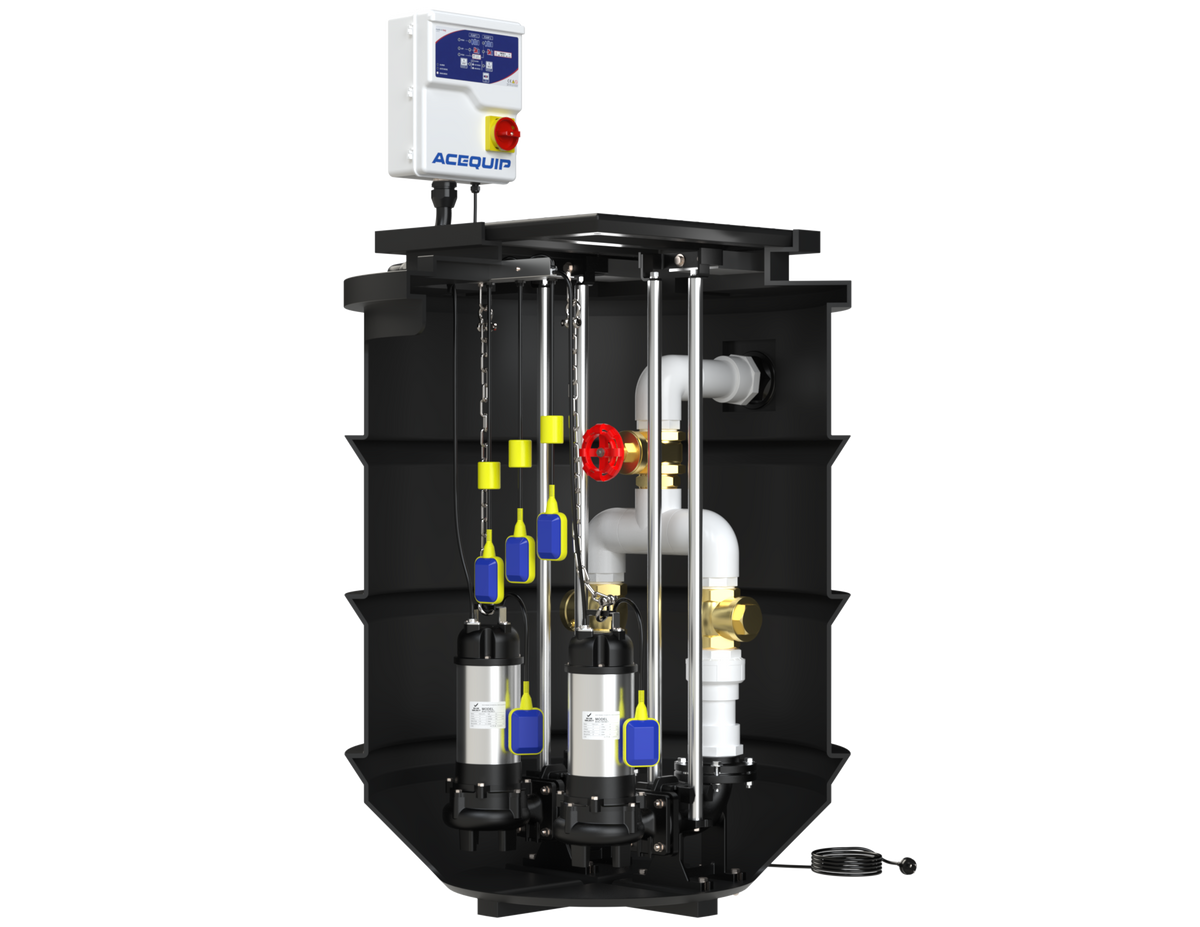

BLUESELECT 1000L Dual Pump Station with 240V, 1.1KW Sewage Grinder Pumps

BLUESELECT 1000L Dual Pump Station with 240V, 1.1KW Sewage Grinder Pumps

BSPS-1000L-D-G-1.1KW-1PH-PP

Made to order

Out of stock

Log in to view pricing Become a wholesaler
Shipping calculated at checkout.

Contains

  • 1000L Engineered inground pump well
  • Light Duty Poly Lid
  • 2x 240V 1.1kW manual grinder pumps
  • Dual pump controller
  • 3x 10mm neoprene float switches
  • Lifting chains fitted to each pump - lifting chain includes large loop holes (1per meter) for staged lifting/lowering of pumps
  • Operating manual & installation guide
  • 3 terminal float switch mounting bracket - fitted to the tank internal
  • Guide rail kits fitted to the tank
  • Isolation & non return valves & associated plumbing complete


Specifications

  • Dimensions: 1480mm high x 1140mm diameter
  • Access opening size: 600mm x 600mm
  • Pumps used in the kit: BlueSelect model: BGM-1100-32-1
  • Control panel used in the kit: ACEQUIP DPCP-240-2-16A
  • Pump station outlet: 50mm male thread
  • Guide rail material - 304SS
