Pressure Tanks | AS1210 Compliant ASME | GWS Pressure Wave, Max and Ultra Max

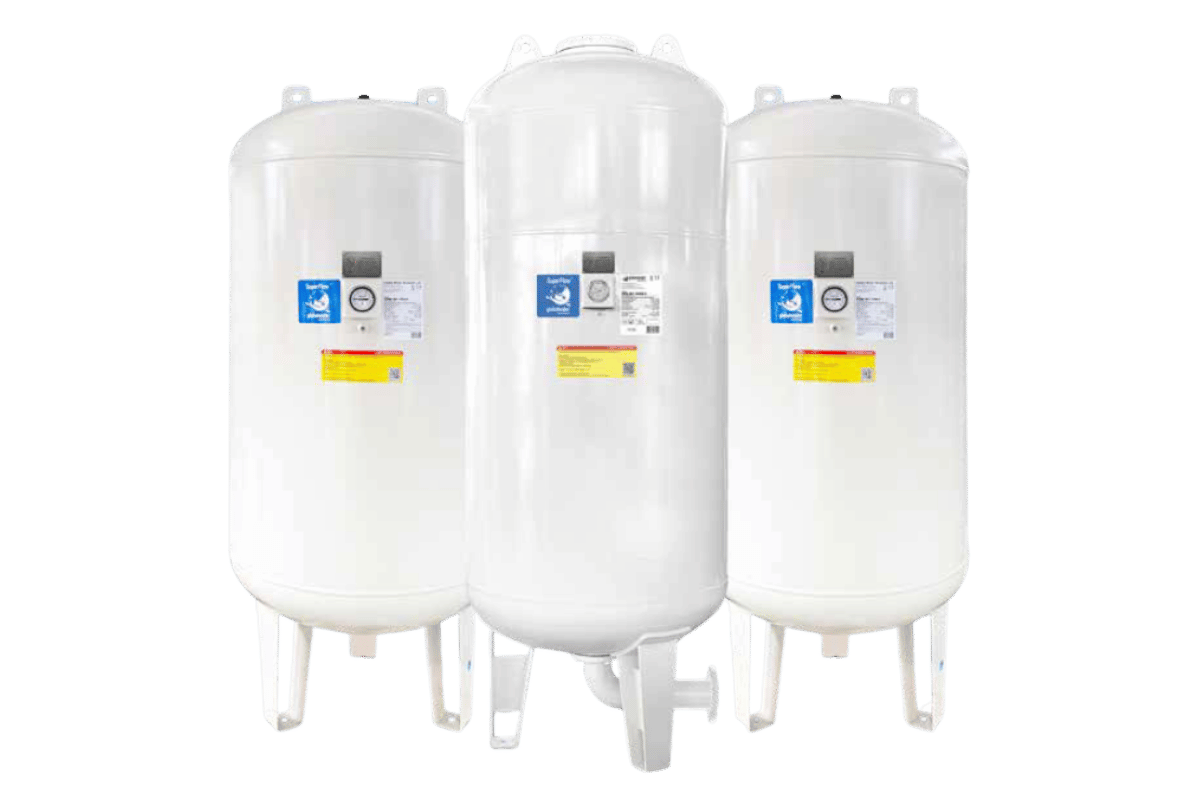

GWS Pressure Tanks: AS1210 Compliant Pressure Tanks

GWS is the leading manufacturer of pressure tanks built to the world’s most rigorous and demanding quality standard - the American Society of Mechanical Engineers (ASME) Boiler and Pressure Vessel Code. They are also AS1210 complaint.

In addition to the standard range, GWS also offers a complete suite of ASME pressure tank design and fabrication services for custom sizes and pressure ratings to suit any application. Southern Pumping are exclusive distributors of this product in Australia and our trained staff are ready to answer your enquiries - please call 1800 810 670 for more information.


• 10, 16 & 25 bar pressure rating. Custom pressure ratings available on request.

• Replaceable membrane design.

• ISO9001, ISO14001, ISO45001 approved facility.

• Radiographically tested (RT) weld joints.

• Manufacturer’s Data Report (MDR).

• Permanent data record maintained for each vessel.


Email enquiries

GWS Pressure Tanks: PressureWave™ Series

Global Water Solutions PressureWave™ pressure tanks are ideally suited for a wide range of applications, including booster systems, thermal expansion, irrigation systems, and hydraulic hammer arresting. Please call 1800 810 670 for more information. Southern Pumping are exclusive distributors of this product in Australia and our trained staff are ready to answer your enquiries.

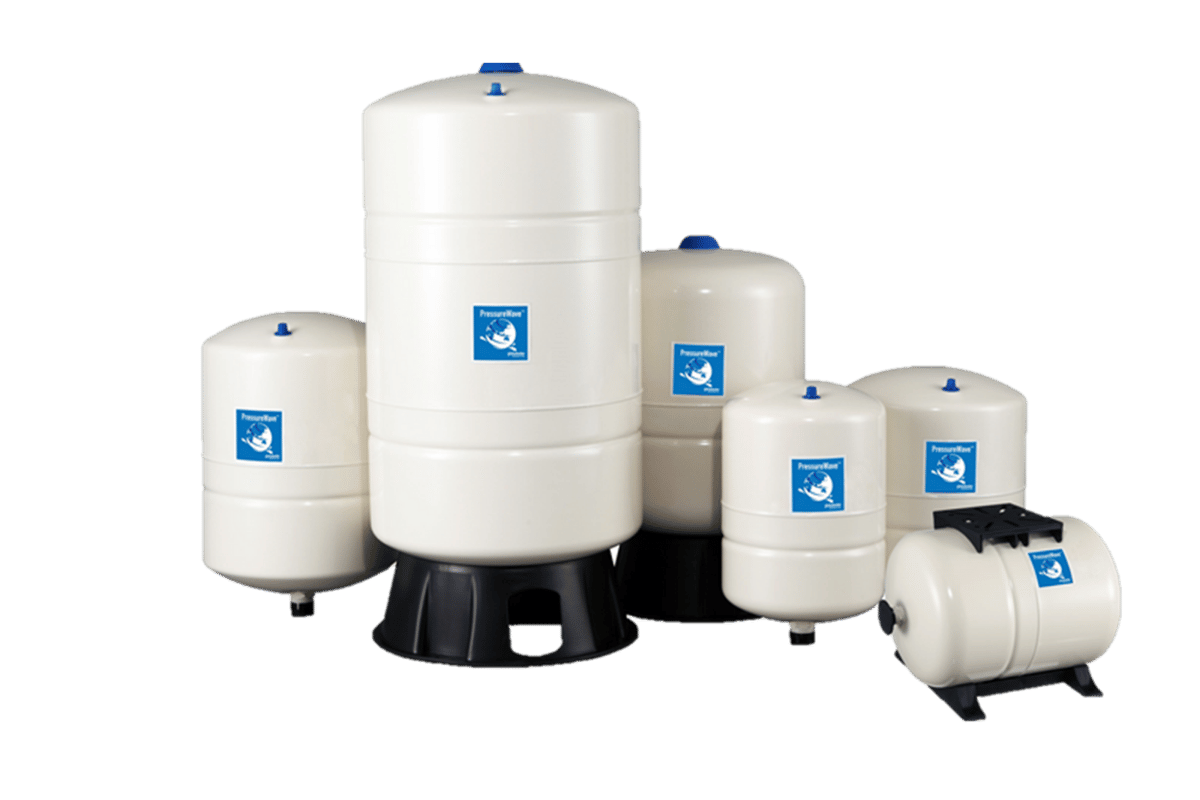

GWS Pressure Wave tank range

FEATURES

  • Single diaphragm design
  • CE/PED, WRAS, ACS, ISO:9001 approved
  • Patented stainless steel water connection
  • Virgin polypropylene liner
  • Two part polyurethane, epoxy primed paint finish
  • Leak free, o-ring sealed air valve cap
  • Comprehensive testing
  • No maintenance
  • Available in 10 bar maximum pressure

The PressureWave™ Series of pressure tanks is constructed of a virgin polypropylene liner combined with an FDA approved high grade butyl diaphragm. This is held against the wall of the tank with a steel clench ring. The brass air valve, sealed by a threaded o-ring valve cap, prevents air leaks. Water enters the tank through a patented stainless steel water connection. The diaphragm and liner are both reinforced in specific wear areas for longer life. All internal parts including the air valve are rounded to prevent piercing of the diaphragm in extreme conditions. The water connection uniquely provides a dual water/air seal ensuring a complete leak free and maintenance free pressure tank.

On the exterior the almond colored two-part polyurethane paint finish over an epoxy undercoating provides hundreds of hours of UV and salt spray protection.

PressureWave™ tanks are quality tested at several stages on the production line to ensure the structural integrity of every tank. Global Water Solutions PressureWave™ tanks represent the best value for the investment and are the best quality pressure vessels available today.

PDF Download:

Email enquiries

GWS Pressure Tanks: Max™ & UltraMax™ Series

Southern Pumping are exclusive distributors of these pressure tanks in Australia and our trained staff are ready to answer your enquiries - please call 1800 810 670 for more information.

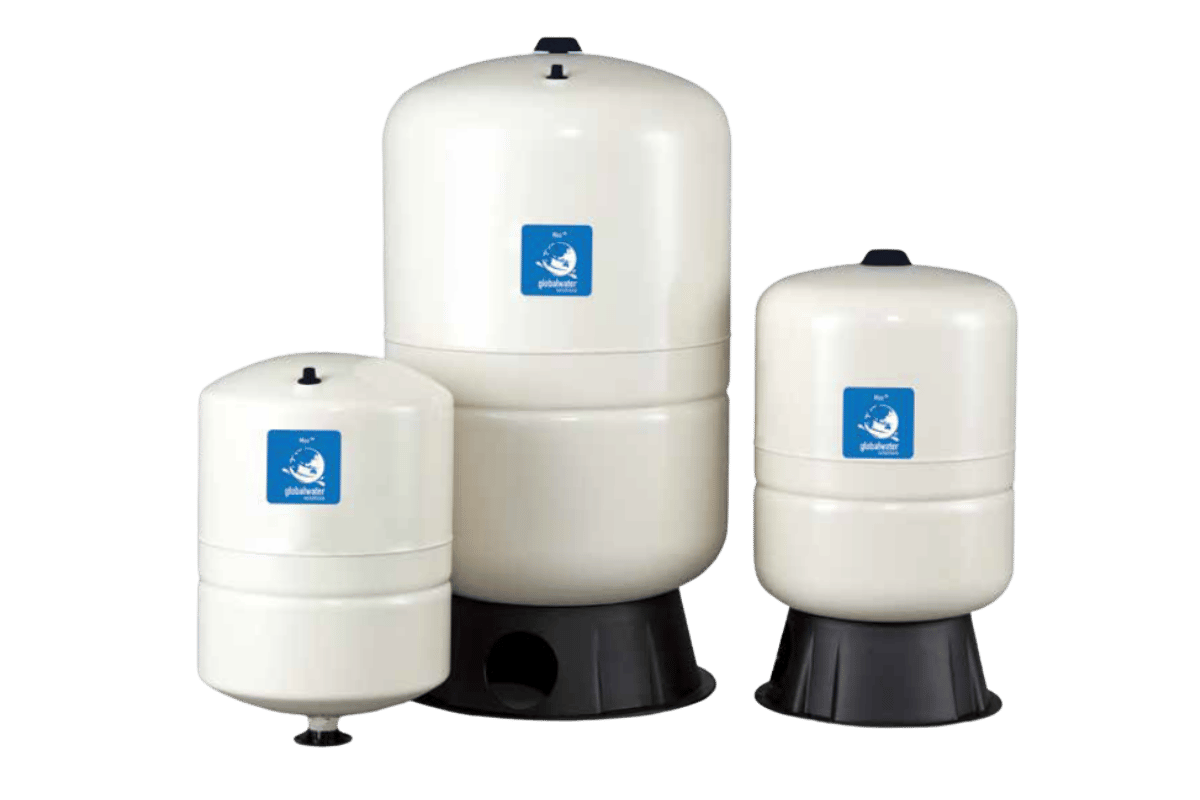

GWS Max & UltraMax tank range

FEATURES

  • Suitable for many high-pressure applications
  • Super thick steel construction
  • Patented stainless steel water connection
  • Virgin polypropylene liner
  • Two part polyurethane, epoxy primed paint finish
  • Leak free, o-ring sealed air valve cap
  • Comprehensive testing
  • No maintenance
  • Single diaphragm design
  • Available in 16 bar and 25 bar maximum pressure

PDF Download:

Email enquiries
