Pump Problem: How Axial Thrust and Blockages Destroy Bearings

Every maintenance team knows that pumps are the workhorses of industrial operations. But there is a silent, physical force constantly working inside them that can turn a healthy machine into a pile of scrap metal if left unchecked: axial thrust.

We recently pulled a vertical sump pump into the shop that was suffering from severe internal damage. Here is a breakdown of what we found, why it happened, and how you can prevent the same catastrophic failure in your facility.

What is Axial Thrust?

In a centrifugal pump, axial thrust is the net force exerted along the pump shaft. It happens because of internal pressure imbalances acting across the impeller surfaces.

This force continuously pushes the entire rotating assembly in a specific direction—usually toward the suction side. Under normal operating conditions, the pump’s bearings are designed to handle a predictable amount of this load. But when things go wrong inline, that predictable force turns destructive.

Case Study: Teardown of a Failed Vertical Sump Pump

We recently carried out repairs on a vertical sump pump that came to us showing classic, extreme signs of axial thrust damage.

When we opened up the bearing housing, the spherical taper roller bearing on the impeller side told the whole story. The thrust load had completely overwhelmed the component, leading to a chain reaction of failures:

• Extreme Thermal Wear: The immense, unmanaged friction caused a massive spike in localized heat.

• Cage Disintegration: The intense heat and structural stress caused the roller cages to completely break apart.

• Component Distortion: With the cages gone, the rollers and the outer shell heavily distorted, locking up the assembly.

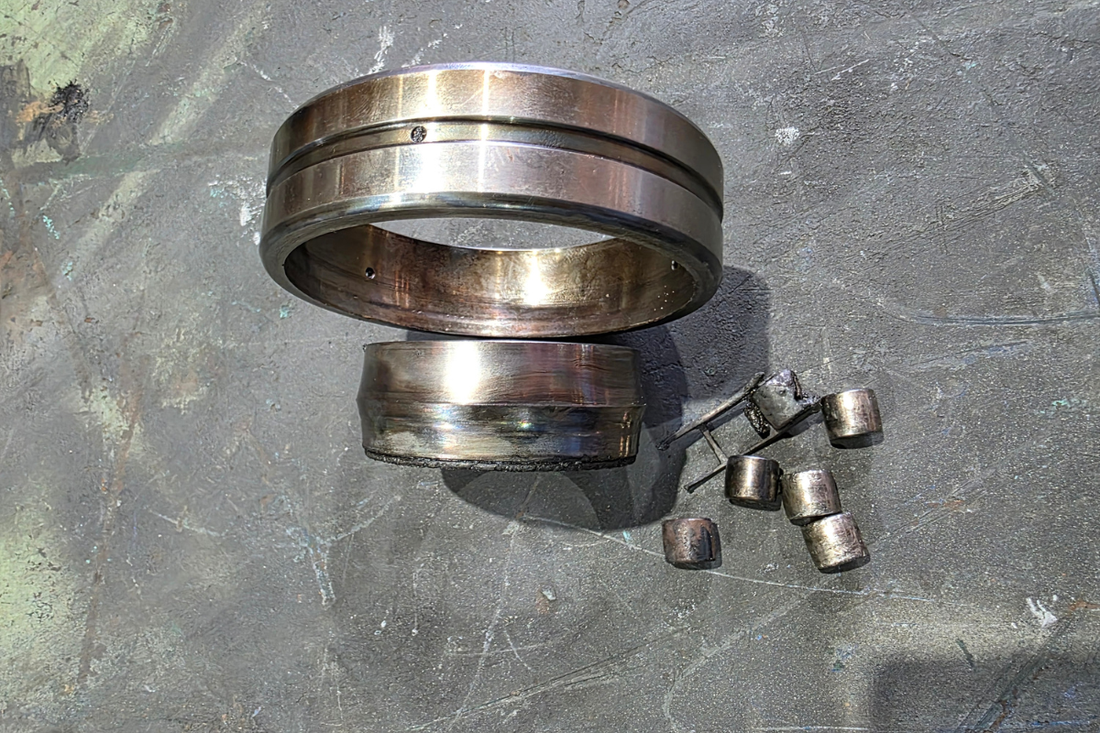

Caption: Severe wear and cage disintegration on the impeller-side spherical taper roller bearing due to excessive axial thrust.

The Root Cause: The Danger of a Blocked Suction

So, what triggered this mechanical meltdown? It wasn't a defect in the bearing or a flaw in the pump's design.

Our team traced the failure back to a large blockage in the pump’s suction strainer.

The Chain Reaction:

1. The Blockage: Debris choked off the fluid entering the suction side.

2. Pressure Drop: This restriction created a severe low-pressure zone at the eye of the impeller.

3. The "Pull" Effect: Because the pressure dropped dramatically at the front, the hydraulic balance shifted. The impeller was violently pulled toward the front cover.

4. Overload: This massive, unexpected spike in axial thrust slammed directly into the spherical taper roller bearing, destroying it in short order.

How to Prevent Axial Thrust Failures

Unplanned downtime is expensive, but failures like this are entirely preventable. If you operate vertical sump pumps or heavy-duty centrifugal systems, add these steps to your maintenance playbook:

• Implement Routine Strainer Inspections: Don’t wait for the pump to starve. Establish a strict PM (preventative maintenance) schedule to pull, inspect, and clean suction strainers.

• Monitor Differential Pressure: If your system allows, install pressure gauges before and after the suction strainer. A sudden drop in pressure is your early warning sign of a blockage.

• Watch the Amperage and Vibration: Starved pumps vibrate differently and cause motors to draw abnormal current. If your telemetry flags a weird spike, shut it down and check the intake.

The Bottom Line

A pump bearing is often just the messenger, the real culprit usually lies elsewhere in the system. In this case, a simple blocked strainer cost the team a bearing assembly, a temporary loss of production, and an emergency rebuild. Keep your intakes clear, monitor your pressures, and respect the power of axial thrust.
