Background & Application Context

In open-pit and underground mining operations, effective water management is critical to continuous production. The client relied on a heavy-duty Hydro Titan centrifugal pump configured to transfer solids-laden water from a collection sump to downstream treatment facilities.

Hydro Titan pumps are built for rugged, heavy-duty service, designed to handle abrasive slurry and industrial water. However, the system began experiencing intermittent operational disruptions, culminating in a sudden, catastrophic mechanical failure that halted transfer operations.

The Problem: Operational Instability

Following an unexpected line shutdown, the pump failed to restart and showed signs of severe internal binding. On-site operators reported frequent, rapid power cycles leading up to the breakdown.

Suspected Root Causes:

  1. Control Switchgear Chatter: Turbulent sump conditions and slurry sedimentation caused float switches and inline flowmeters to send intermittent, erratic start/stop commands to the motor control centre (MCC).
  2. Non-Return Valve (Check Valve) Failure: Solids buildup prevented the discharge non-return valve from seating correctly. As the fluid head drained back into the sump, the pump was driven into high-speed reverse rotation. When a restart command occurred during backflow, the motor subjected the rotating assembly to extreme counter-rotational shock torque.

Teardown & Failure Analysis

A full mechanical teardown of the pump assembly revealed an escalating chain of internal failures triggered by severe torsional shock loads:

[Rapid Start/Stop or Reverse Spin]
               │
               ▼
[Torsional Shock Shears Shaft Keyway]
               │
               ▼
[Impeller Spins Freely & Bores Out Shaft]
               │
               ▼
[Axial Migration & Volute Collision]
               │
               ▼
[Destruction of Wear Rings & Bearing Journals]

Component Condition Report

Component Observed Damage Failure Mechanism

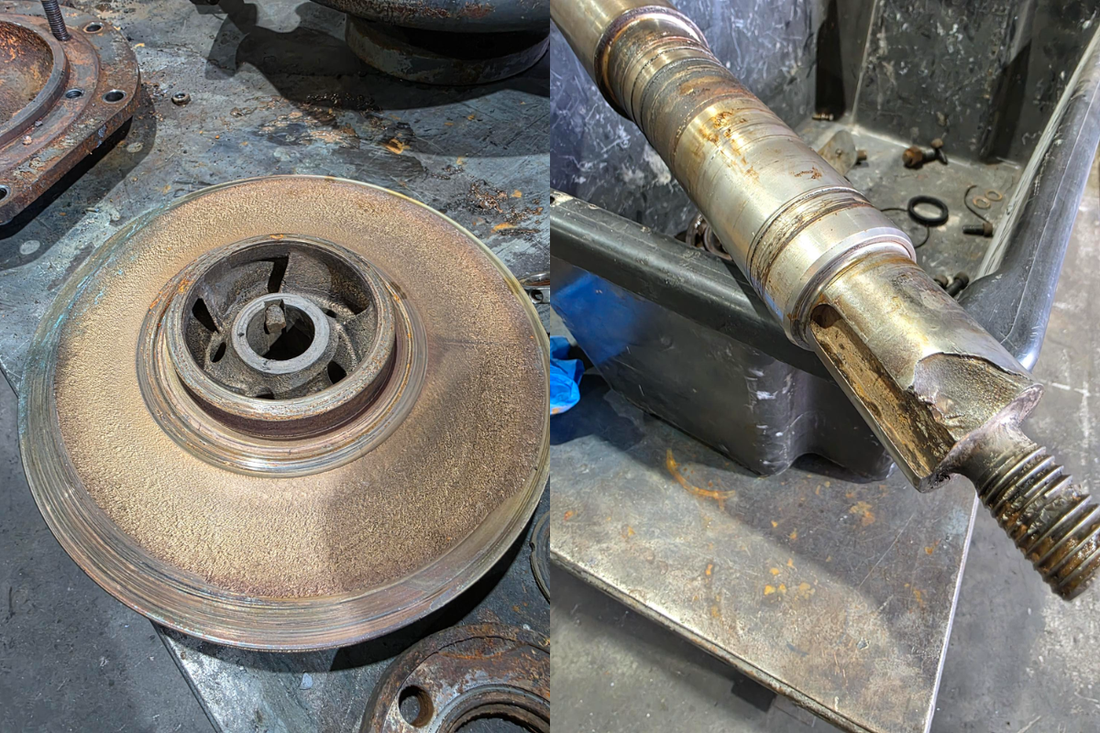

Drive Key & Keyway Key completely sheared; keyway wall collapsed Instantaneous torsional shock overloading design yield limits.
Impeller Bore & Shaft Heavy galling, scoring and material transfer Shaft continued to spin inside the loose impeller, machining both contact surfaces.
Volute Casing Deep internal gouges and impact scarring Loss of axial position caused the spinning impeller to collide directly with the volute.
Wear Rings Complete destruction of running clearances Metal-to-metal contact and unconstrained radial runout.
Bearing Journals Severe scoring, heat discolouration and runout Extreme radial vibration and shock loading transmitted through the bearing assembly.

The Economic Assessment

Upon completing the damage assessment, the required scope of repair included:

  • Complete shaft replacement
  • New cast/chrome impeller replacement
  • Volute casing replacement
  • Full replacement of wear rings, mechanical seals and bearings
  • Precision machining and line-boring of the bearing housing

Verdict: The repair cost exceeded 75% of the capital cost of a new replacement pump. The asset was declared a total write-off (uneconomical to repair), resulting in emergency capital replacement costs and extended operational downtime.

Engineering Recommendations & Solutions

To prevent similar failures across the client's dewatering fleet, our engineering team recommended the following preventative measures:

Control & Electrical Enhancements

  • Anti-Cycling Timers (PLC Logic): Program a mandatory minimum run-time and minimum off-time delay (e.g., 3–5 minutes) to prevent short-cycling from sensor chatter.
  • Level Sensor Damping: Relocate float switches into stilling wells to isolate them from surface turbulence, or switch to continuous hydrostatic/radar level transmitters with signal smoothing.
  • Soft Starters or Variable Speed Drives (VSDs): Ramp motor torque smoothly on start-up to protect drive keys from sudden peak shear loads.

Mechanical Integrity Checks

  • Non-Return Valve Maintenance Protocols: Establish routine flush-and-inspection intervals for discharge check valves handling abrasive solids to ensure full seating and prevent backflow-driven reverse rotation.
  • Reverse-Rotation Interlocks: Integrate shaft rotation sensors or reverse-power interlocks to prevent motor energisation while the rotating assembly is freewheeling backwards.

Need an Application Review on Your Site?

If your pumps suffer from frequent cycling, valve fouling or premature mechanical failure, our engineering team can conduct a comprehensive site audit to evaluate control systems, check valves and hydraulic configurations.

Contact our engineering team today to eliminate costly pump write-offs and maximise site uptime.
